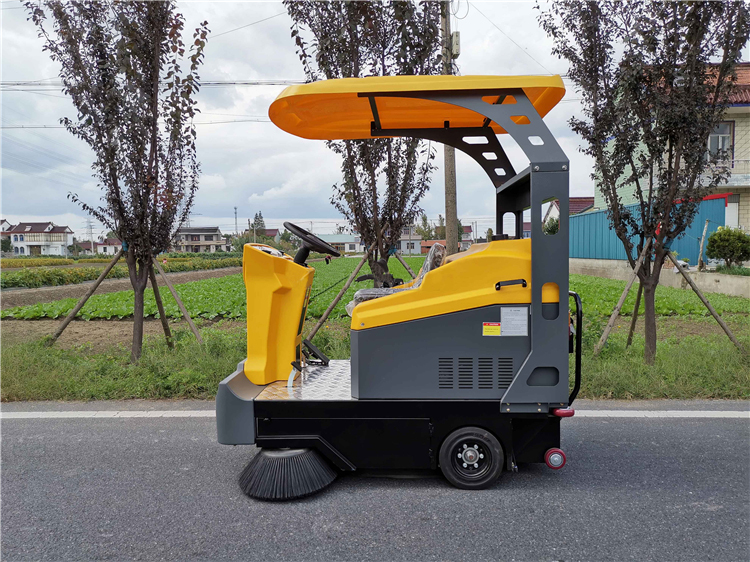

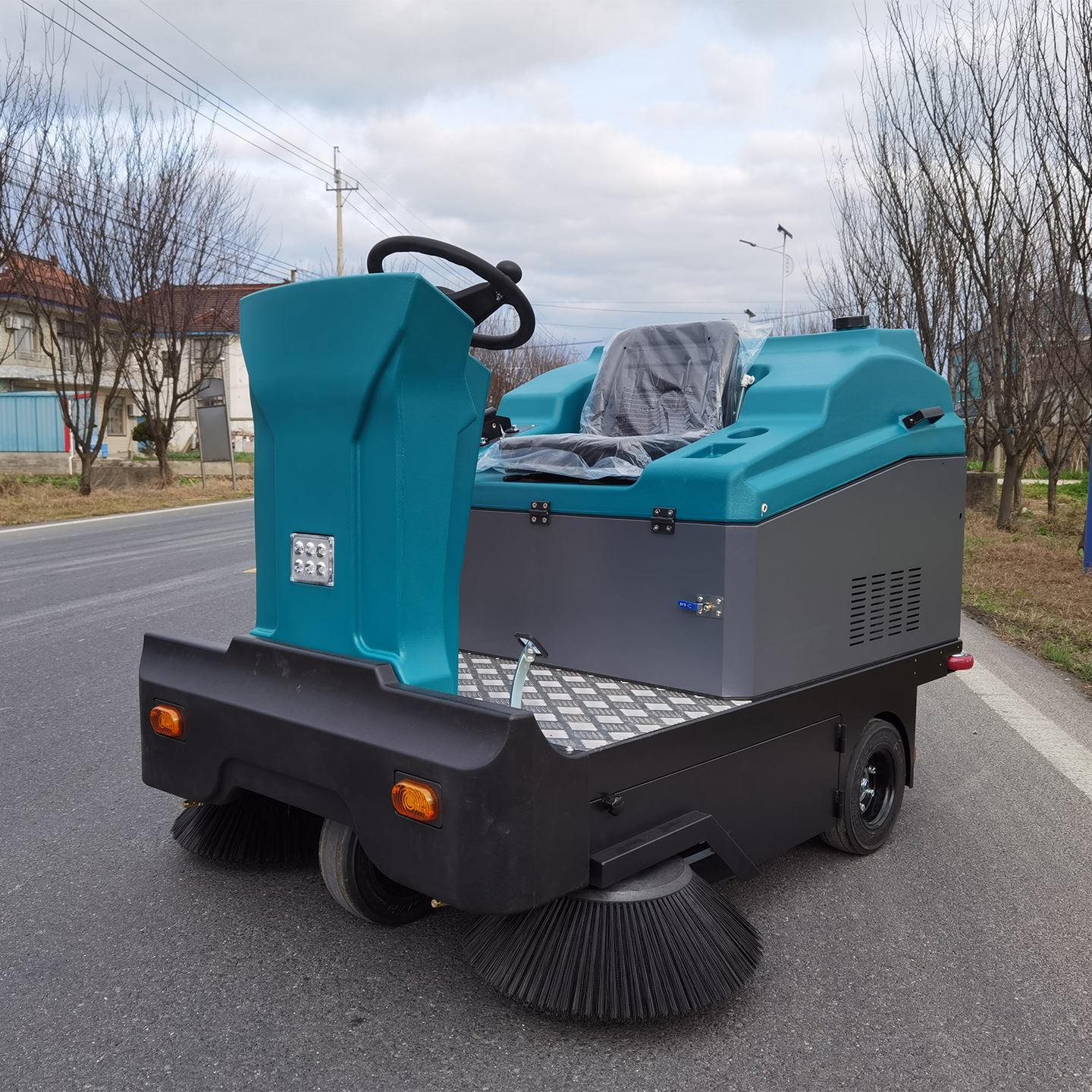

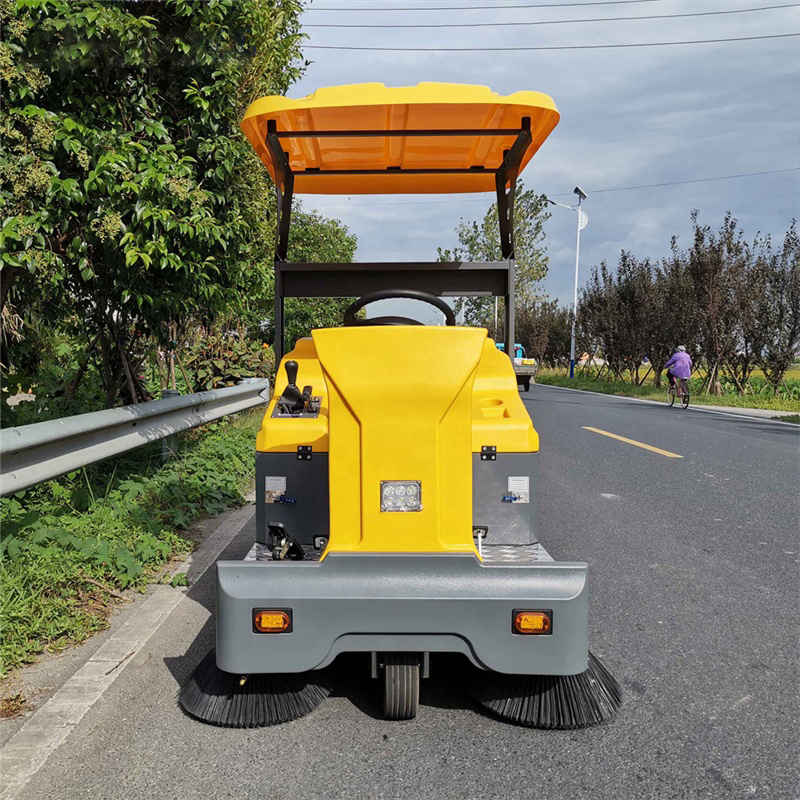

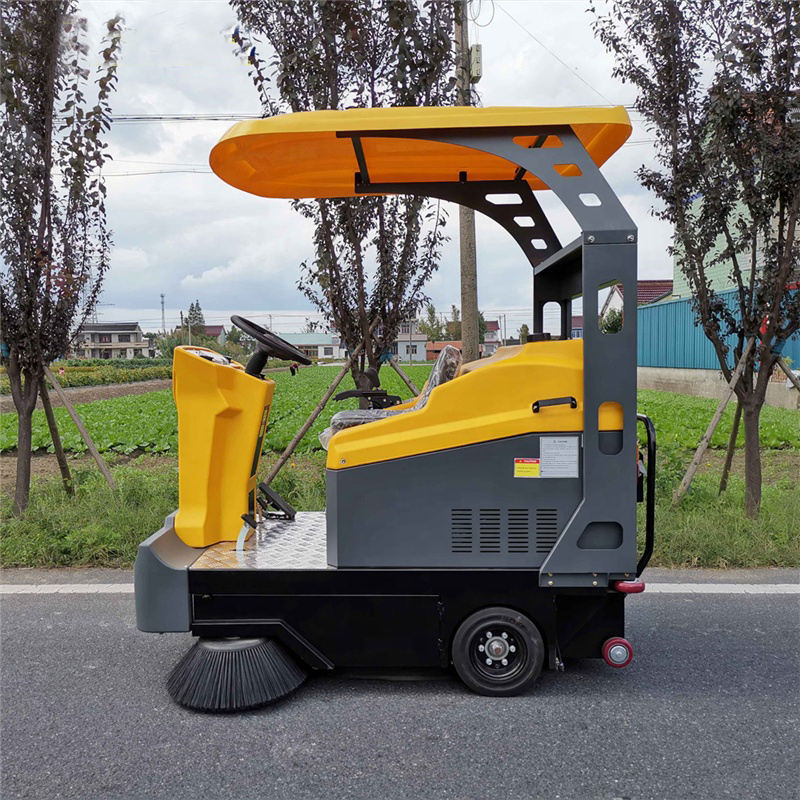

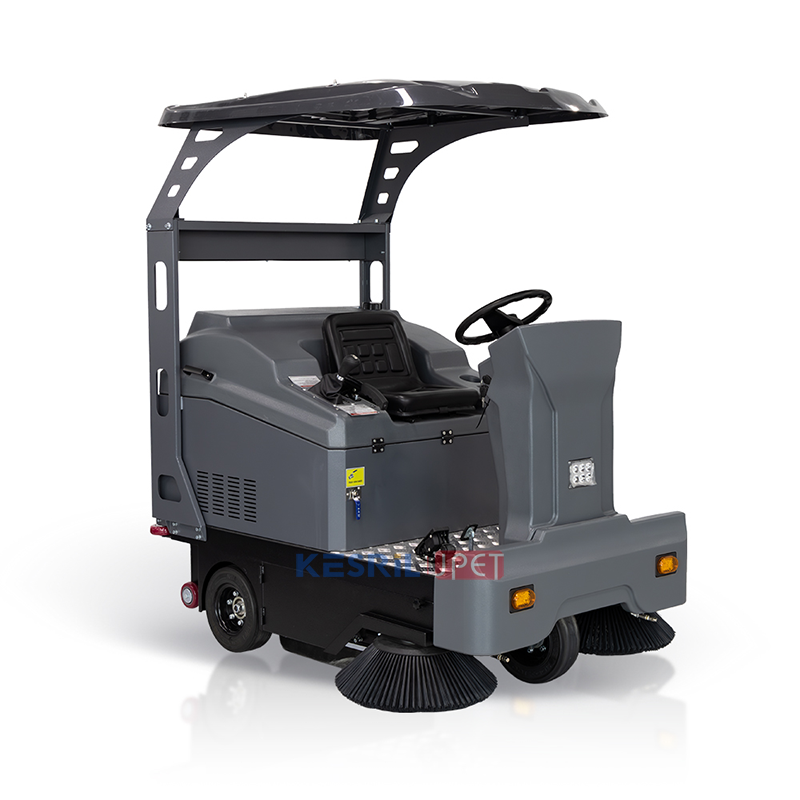

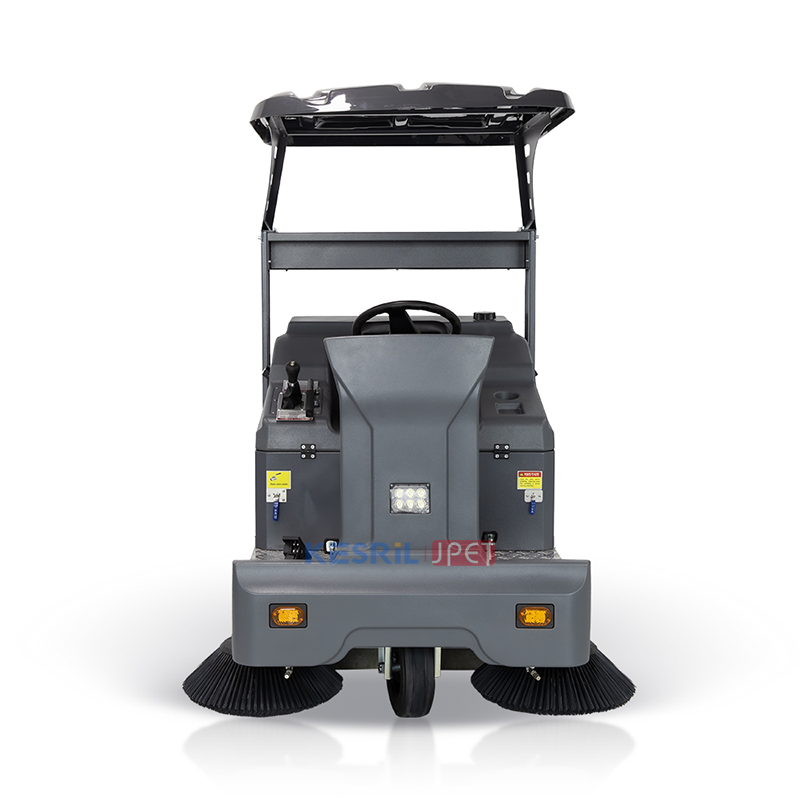

Industrial Ride On Road Sweeper

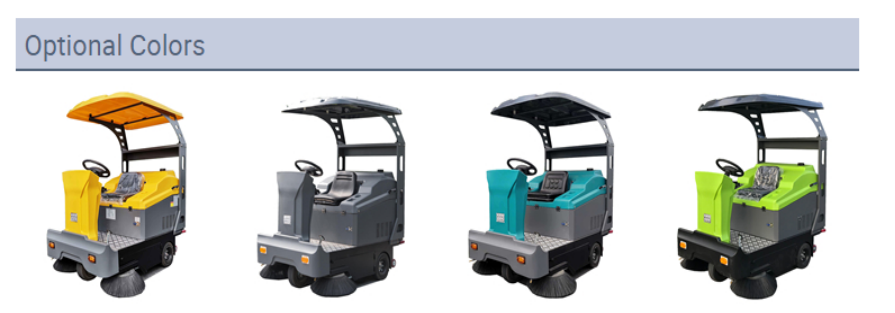

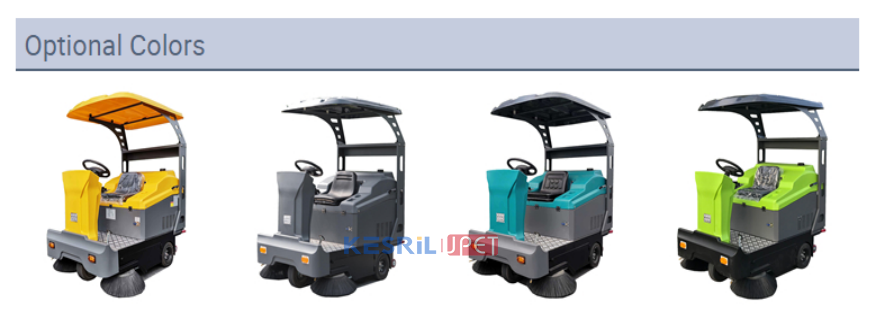

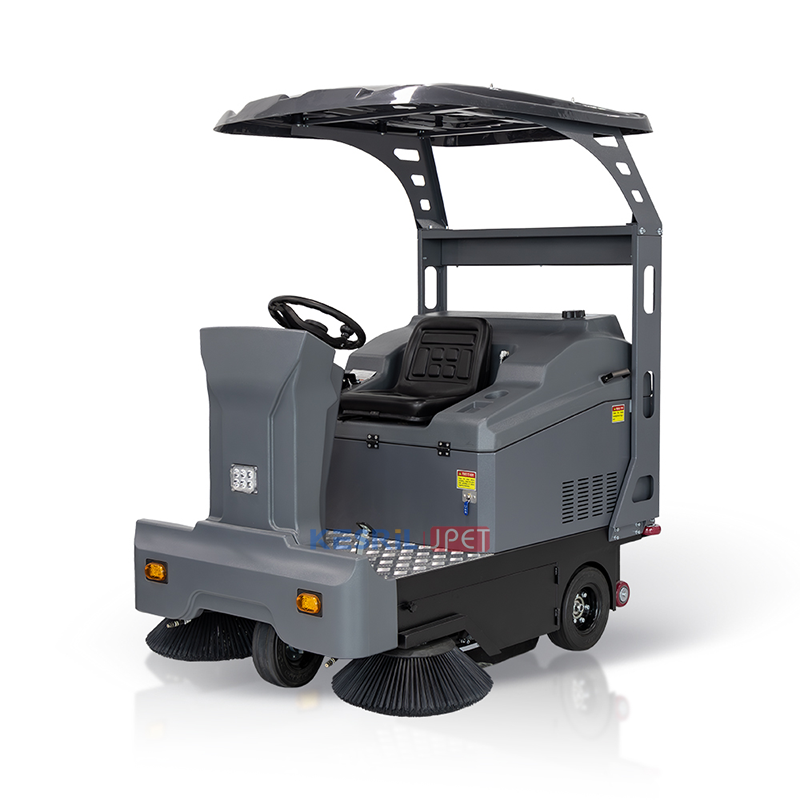

Optional Color: Yellow/ Grey/ Blue/ Green
PRODUCT DATA:
Sweeping width | 1400mm |
Cleaning efficiency | 9200sqm/h |
Max gradeability | 28% |
Main brush length | 700mm |
Battery voltage | 48v |
Battery kind | Maintenance free battery |
Continue working time | 4-6h |
Dustbin capacity | 180L |
Water tank capacity | 70L |
Side brush diameter | 500mm |
Driving motor power | 1200w |
Blower power | 700W |
Max working speed | 7km/h |
Filter area | 5m2 |
Turning radius | Spin around |
Max driving speed | 8km/h |

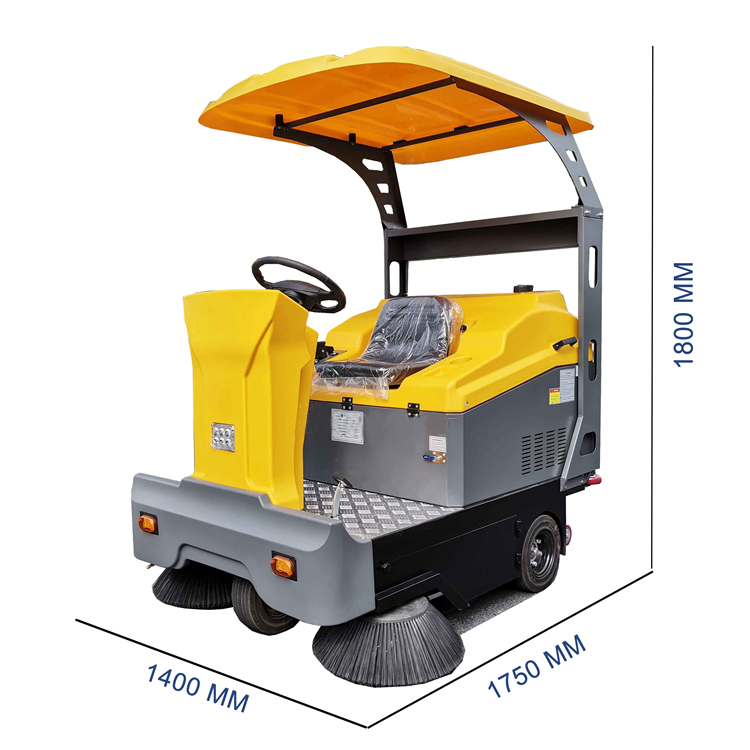

Machine dimension (L*W*H) | 1750*1250*1350mm |
Weight | 400kg |
Standard Configuration: Battery, Charger, Disc brush , Rolling brush, Filter

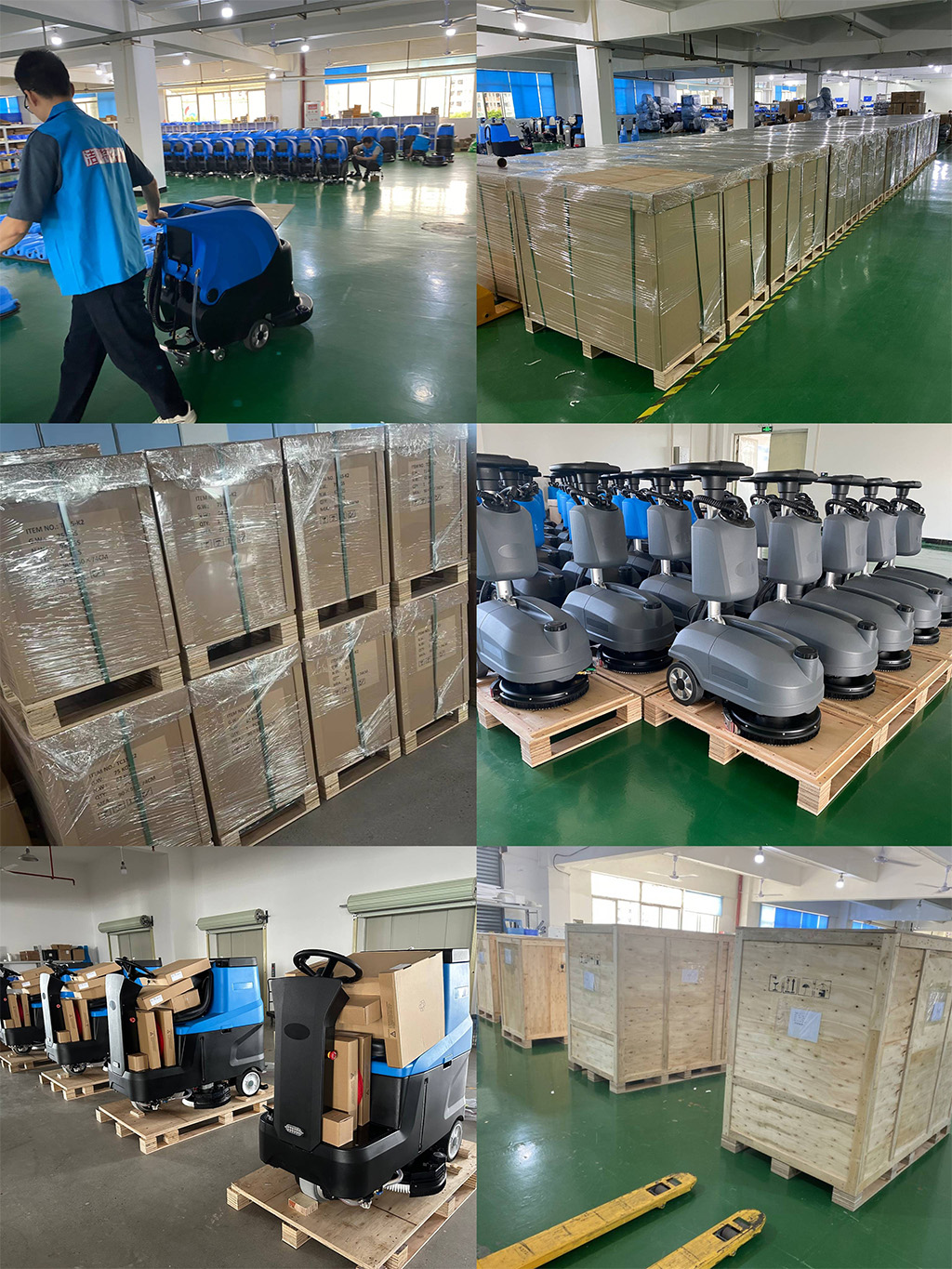

Package: Steel Pallet +Wooden Case
· JP-1400 is a ride on sweeping machine with automatic traction,available in battery version with two side brushes of 1400mm working width.
· Adopt high-capacity maintenance-free 48V lead acid battery, environment protection and long working time.
· Rolling plastic shell and steel chassis, durable and anti-aging.
· Easy to disassemble all mechanical parts, easy to replace brushes and filters
· Forward, backward depends on a main switch
· Adopt solid tire used at airport, better for the life of tire
· Simple electronic control system with over-current and low-voltage protection
· Hybrid of sweeping, vacuuming and watering function
· Hand brake and double disc brake system make driving safety
· It lowers management and usage costs throughout its life-cycle.
· It is silent, can clean in sensitive environments without disturbing people.
· It is fast, 8-10 times faster than human cleaning speed.
PRODUCT DETIALS:

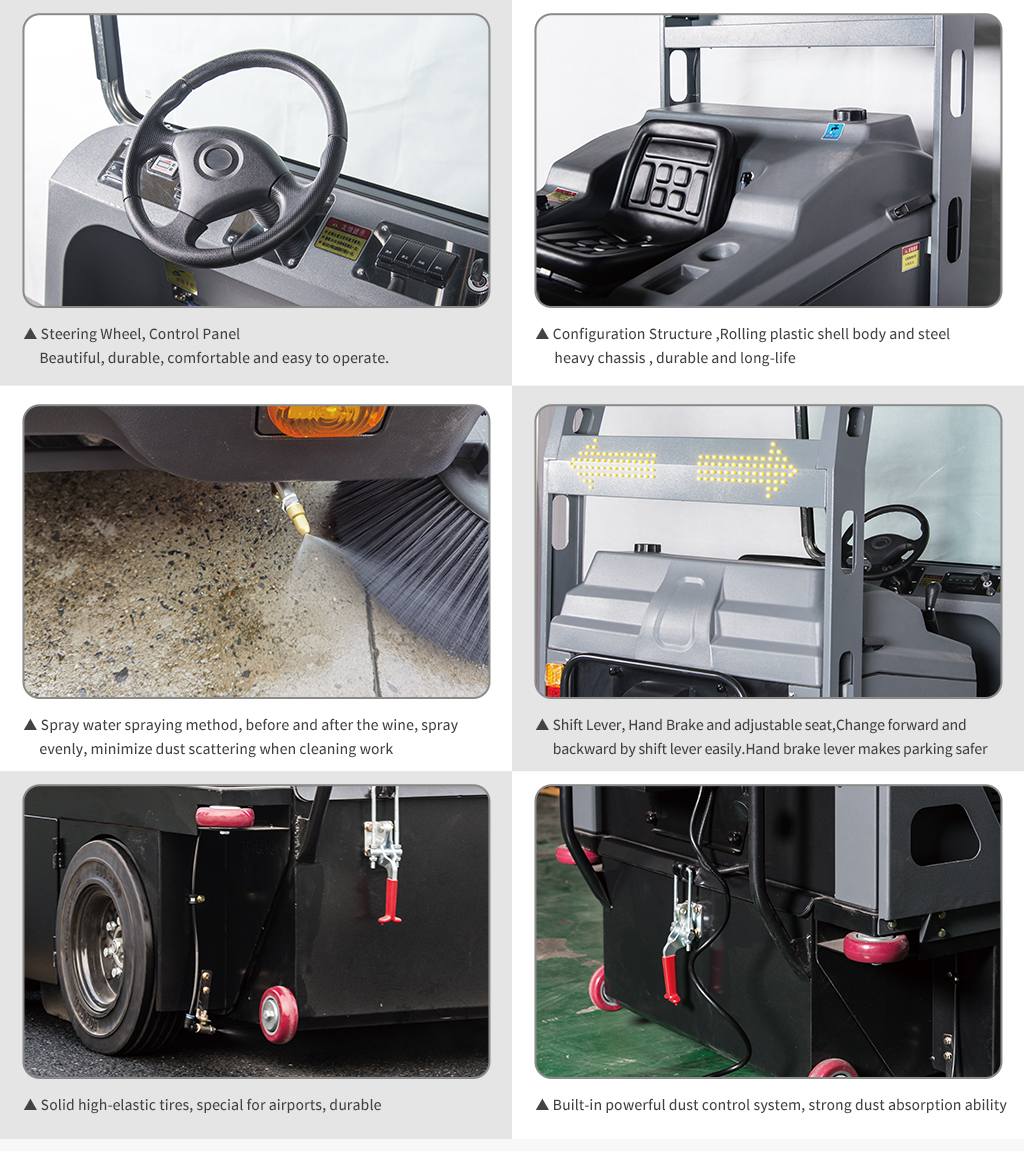

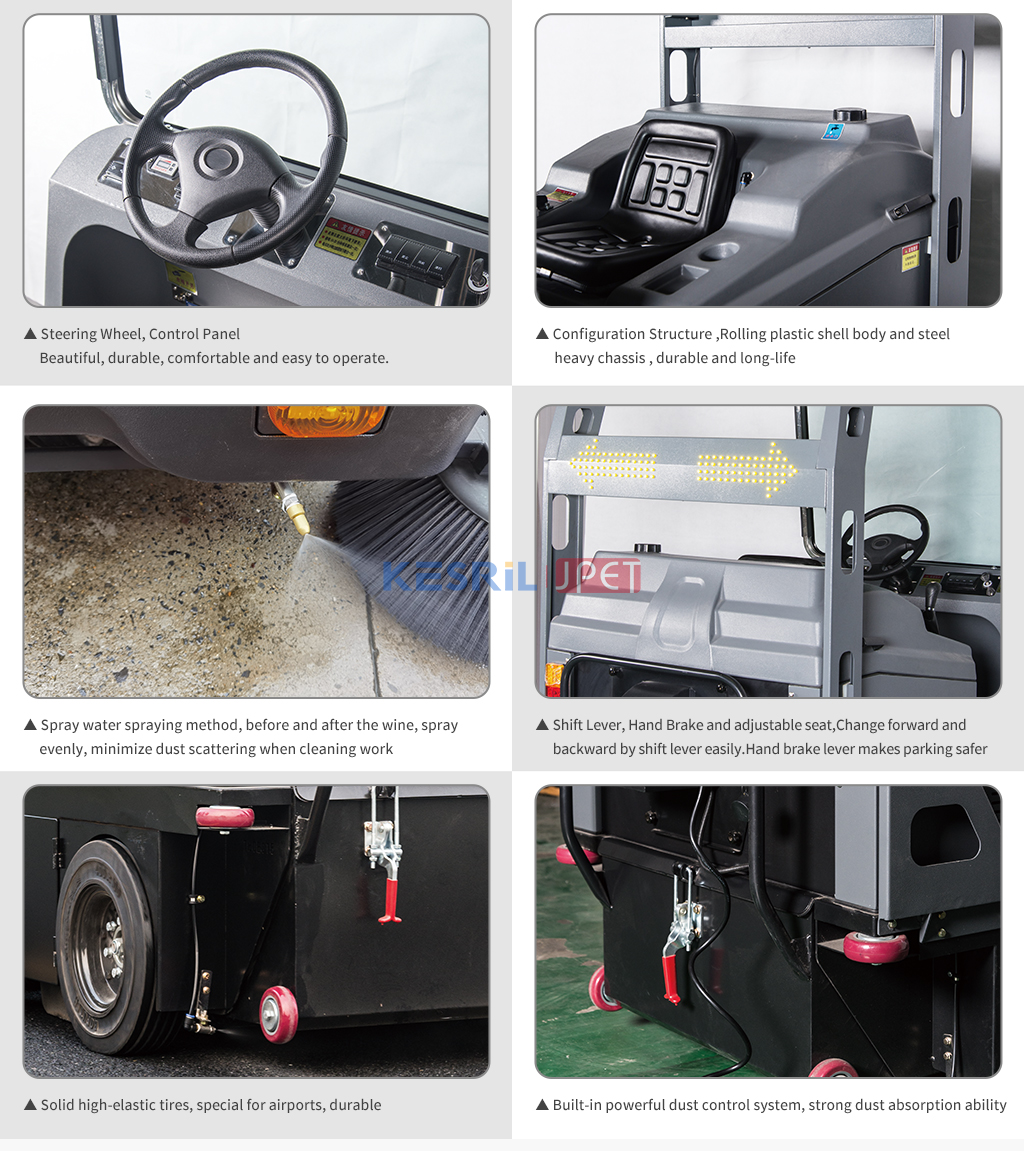

Configuration Structure
Rolling plastic shell body and steel heavy chassis , durable and long-life.

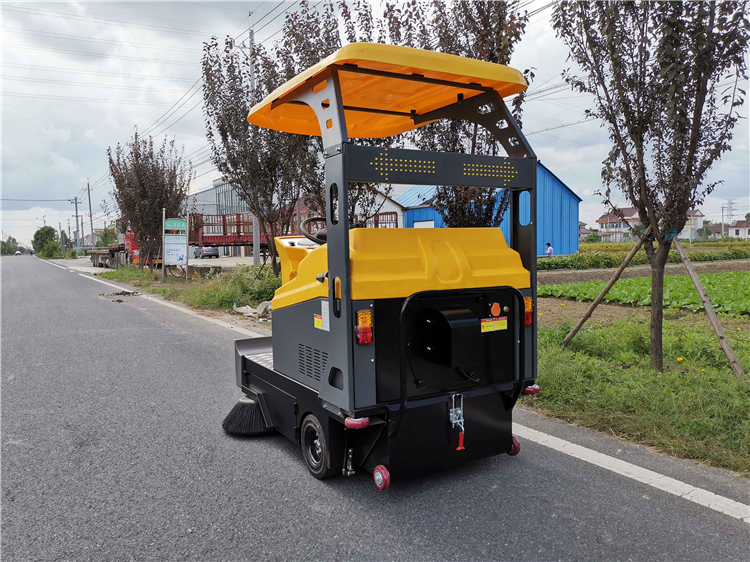

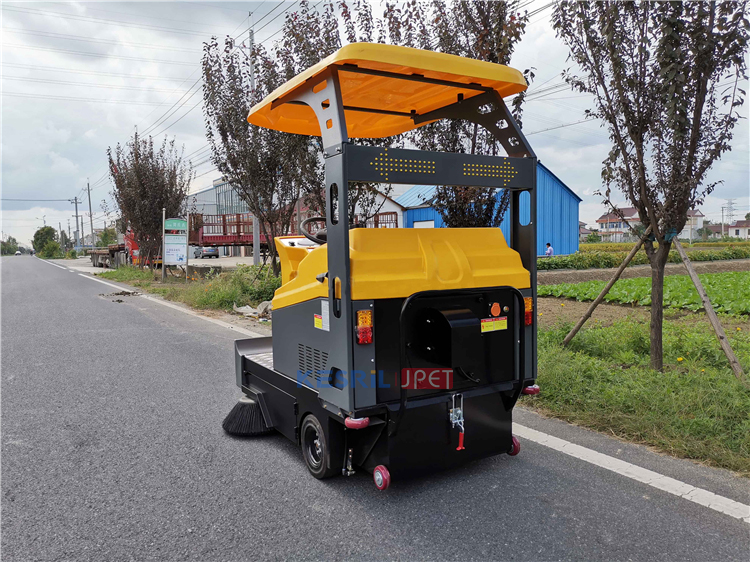

Back of KW-1400 Road Sweeper

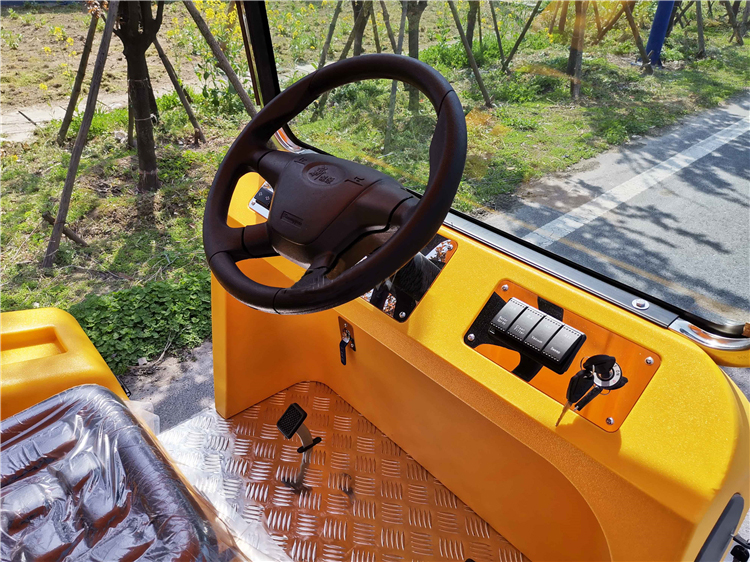

Steering Wheel, Control Panel
Beautiful, durable, comfortable and easy to operate.

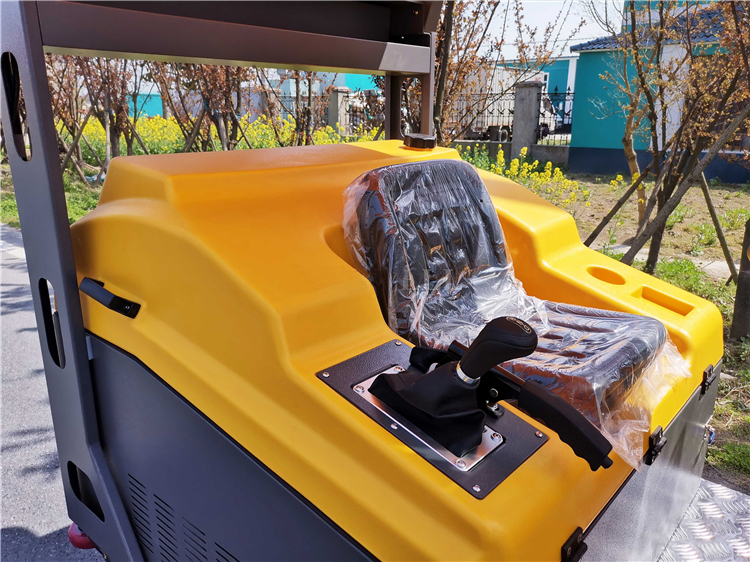

Shift Lever, Hand Brake and Leather Seat
Change forward and backward by shift lever easily.
Hand brake lever makes parking safer.
Leather seat makes operation comfortable.
